Quantum Composers

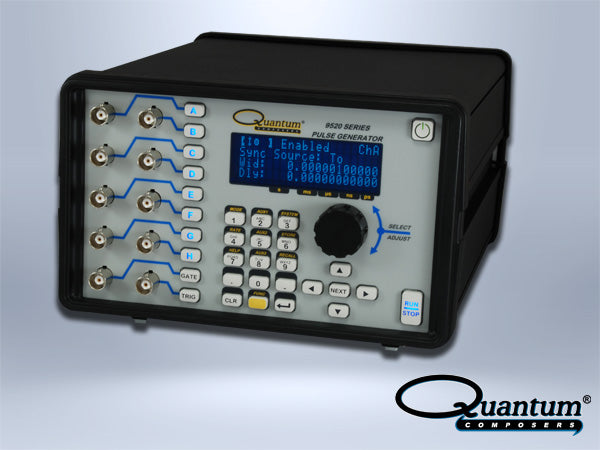

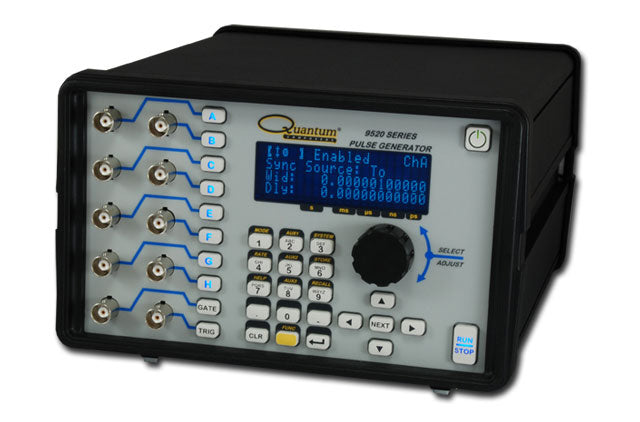

9520 Series Delay Pulse Generator

9520 Series Delay Pulse Generator

Regular price $3,300.00
Regular price Sale price $3,300.00
Sale Sold out
Tax included.
Number of Channel Outputs
Output Channel Types (Call-email for split sets)
Comm Ports
 More payment options

Pickup available at 212 Discovery Drive

Usually ready in 5+ days

The 9520 series has the unique capability of offering differing rates for all the channels using new clock-divider functions, and provides up to eight independent digitally controlled channels with width, delay, rate, and amplitude control on
each output.



Special models with split channels (sets of 2) or optical inputs are available by email or phone order.



Specifications

  • Channels: 2, 4 or 8 Independent Channel Outputs
  • Resolution: 250ps
  • Accuracy: 1 ns + .0001 x setpoint
  • Jitter: < 50 ps
  • Memory: 12 Storage Slots

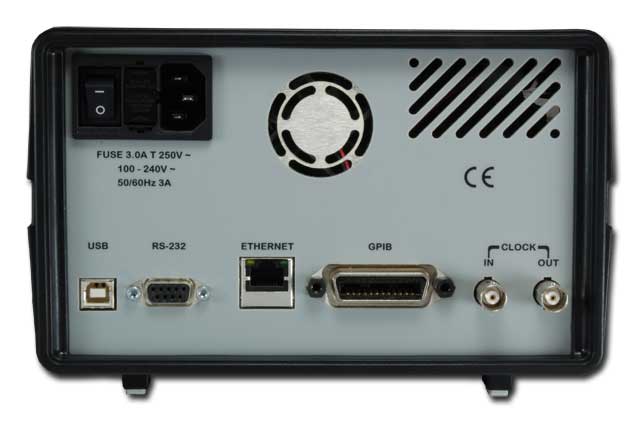

  • Comm Ports: USB, Ethernet, RS232, GPIB
