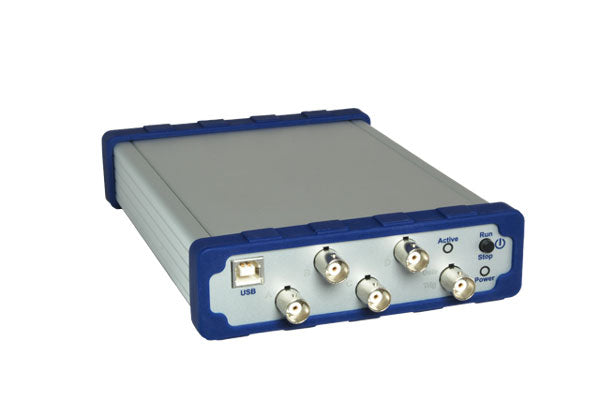

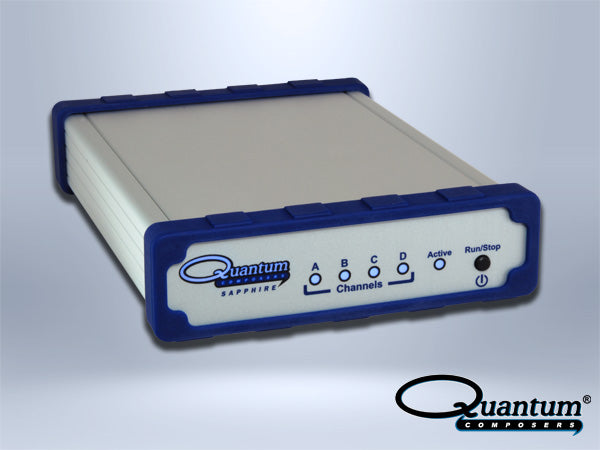

9200 Sapphire Series Delay Pulse Generator

At just 7.125“ x 5.1“ x 1.5” the Sapphire is one of the smallest units available, but you will not be disappointed in its performance, features, or programmability. Finally, a low-cost pulse generator that does not skimp on performance or function. This instrument also has wireless capabilities (optional) via Bluetooth allowing you to communicate without a USB or RS232 connection. Another new feature, is you can power this unit with USB, freeing you from an extra cord.

Specifications

• Channels: 2 or 4 Independent Channel Outputs
• Resolution: 10ns
• Accuracy: 5 ns + .0001 x setpoint
• Jitter: < 500 ps
• Memory: 6 Storage Slots
• Comm Ports: USB, Bluetooth (Optional)
