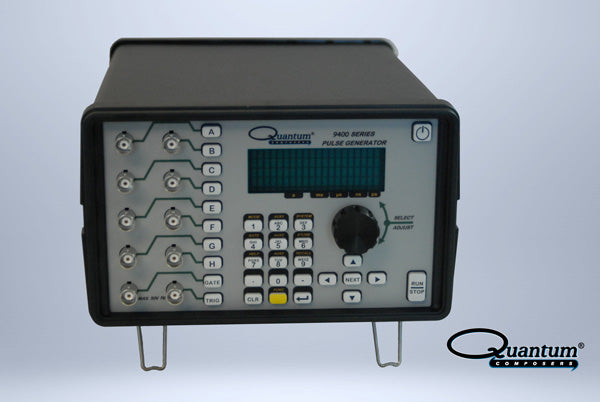

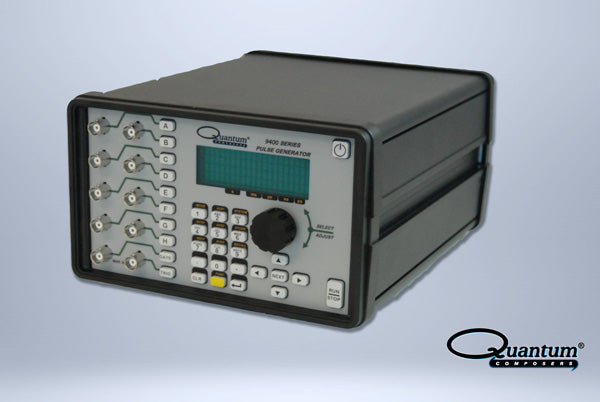

9420 Series Delay Pulse Generator

The Model 9420 Series Digital Delay-Pulse Generator with 2, 4 or 8 independent outputs is designed to provide cutting edge, yet cost-effective solutions to generate and synchronize multiple pulses for a wide range of applications. The delay and pulse width for each channel are independent and digitally controlled which makes the instrument ideal for situations that require synchronizing a number of different events.

Specifications

• Channels: 2, 4, or 8 Independent Channel Outputs
• Resolution: 10ns
• Accuracy: 1ns + .0001 x period
• Jitter: < 250 ps RMS
• Memory: 12 Storage Slots

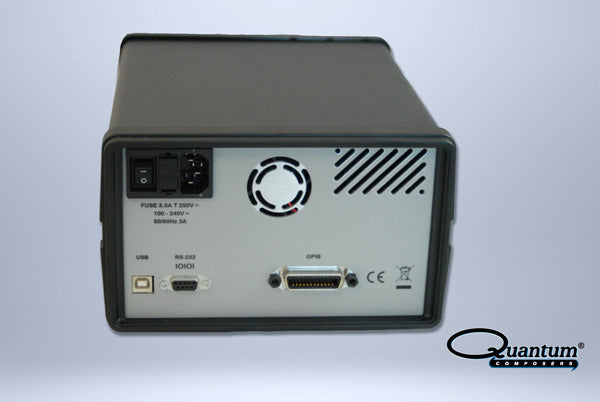

• Comm Ports: USB, GPIB, RS232
