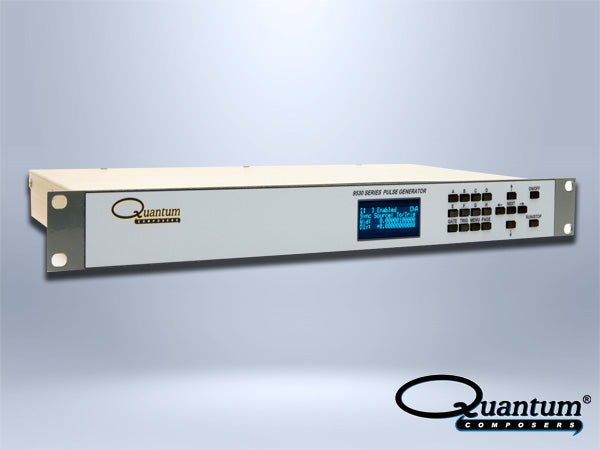

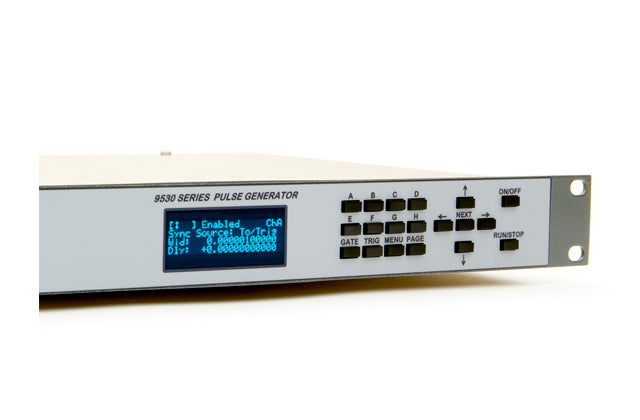

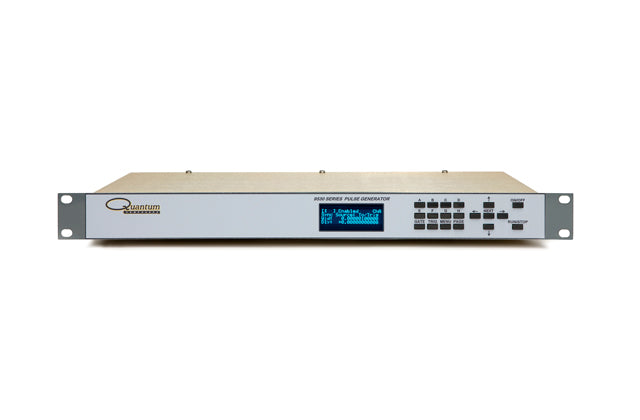

9530 Series Delay Pulse Generator

The 9530 Pulse Generator provides precision timing and synchronization to effectively trigger any series of events or necessary equipment with four or eight independent outputs, dual inputs with gate/trigger or optional dual trigger, and external clock reference input.The 9530 can accept a low amplitude clock frequency down to 20 mV, up to 100 MHz. This offers the ability to phase-lock directly to a laser photodiode signal, providing system timing synchronicity with the laser with very low jitter (< 50 ps). Complimentary Labview Drivers (NI certified) available.

Specifications

• Channels: 4 or 8 Independent Channel Outputs
• Resolution: 250ps
• Accuracy: 1 ns + .0001 x setpoint
• Jitter: < 50 ps
• Memory: 24 Storage Slots

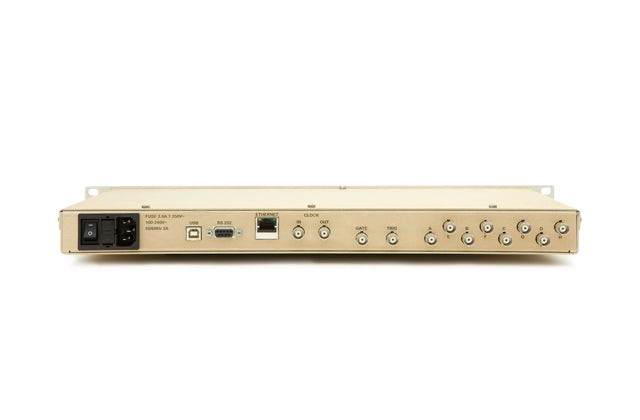

• Comm Ports: USB, Ethernet, RS232
